Coil-in-Shell Heat Exchangers (Without & With Receiver)

Discover the innovation behind Coil-in-Shell Heat Exchangers with Dry All – your solution for top-tier performance in the most demanding scenarios. Unlike conventional designs, Dry All’s Coil-in-Shell heat Exchangers, also known as Helical Coil Heat Exchangers redefine compact efficiency while ensuring peak performance for HVAC&R systems. Crafted to stand the test of time, they offer resilience that system designers can rely on, delivering consistent results. Seamlessly integrating into diverse heat transfer setups, these exchangers are engineered for excellence.

Dry All’s Coil-in-Shell Heat Exchangers are precision-engineered to optimize heat transfer dynamics and elevate operational efficiency. Purpose-built for rugged environments, their construction guarantees unparalleled performance. Despite their streamlined form, these exchangers boast an expansive heat exchange area, translating to unmatched efficiency and effectiveness. From heating to cooling applications, they effortlessly demonstrate exceptional prowess. Dry All Coil-in-Shell Heat Exchangers not only meet but exceed expectations, setting the standard for reliability and performance.

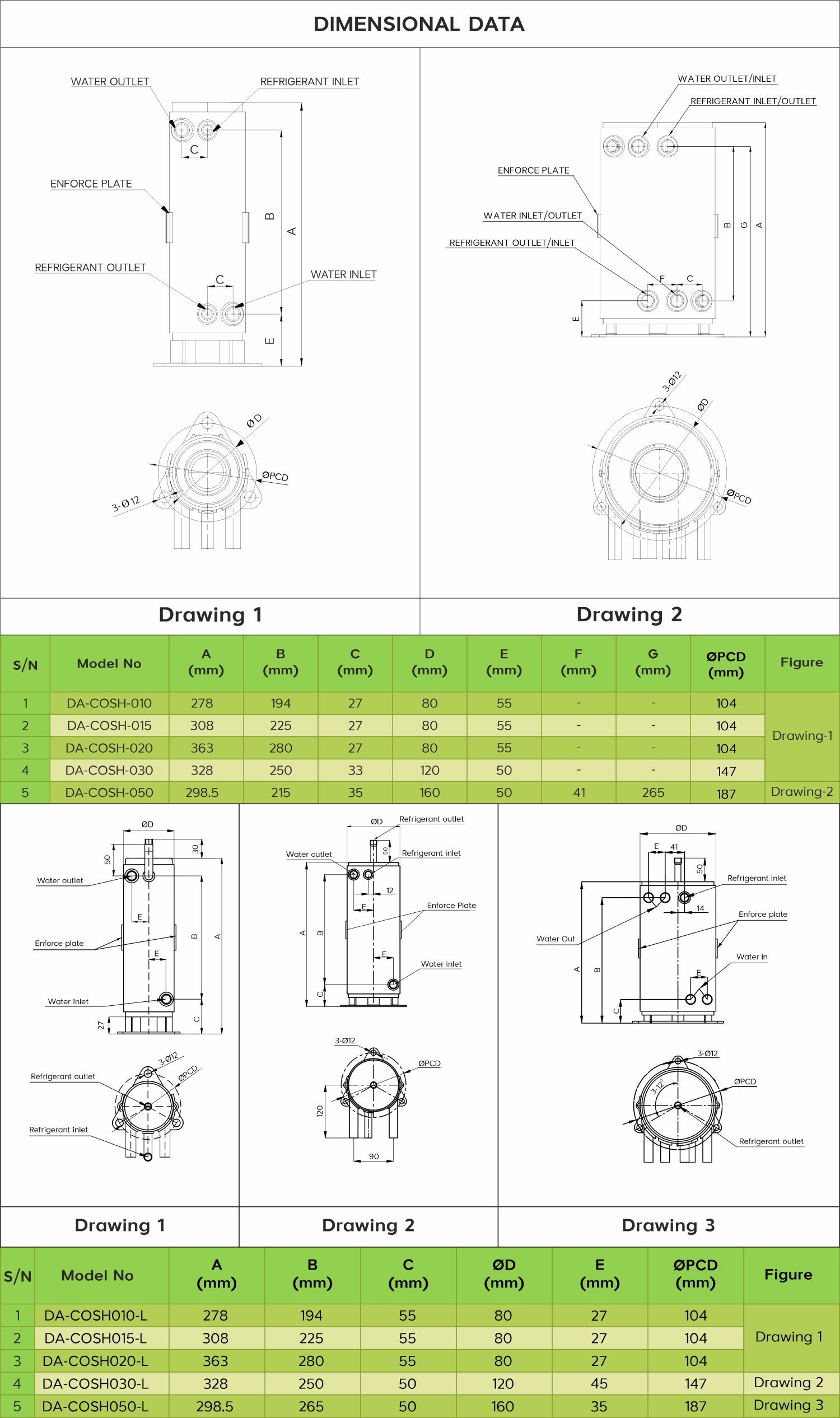

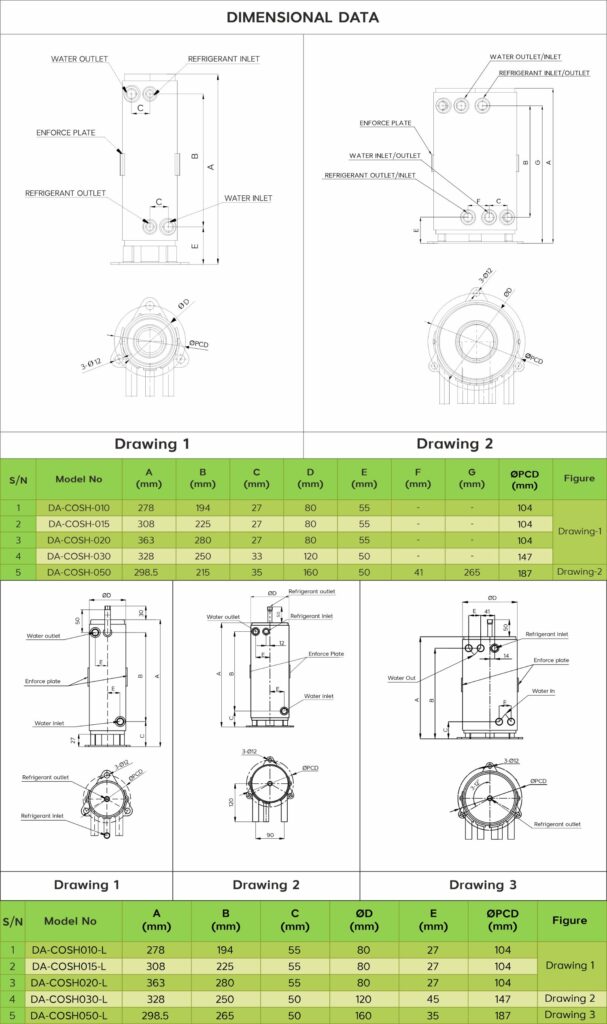

Coil-in-Shell Heat Exchangers

Coil-in-Shell-Heat-Exchangers-01-table

Coil-in-Shell Heat Exchangers with Receiver

Coil-in-Shell-Heat-Exchangers-02-table
  1. What are the available capacities of Dry All coil in shell heat exchanger?
    Ans: Dry All coil in shell heat exchangers ranges from 1TR to 5 TR as a condenser and 0.71TR to 3.56TR as an evaporator
  2. Which refrigerants are applicable for Dry All coil in shell heat exchanger?
    Ans: R410A is the only refrigerant which can be used in Dry All coil in shell heat exchanger
  3. What is the maximum working pressure for Dry All coil in shell heat exchanger?
    Ans: Dry All coil in shell heat exchanger can withstand pressure up to 42 bar for refrigerant side and 15 bar for water side
  4. Why choose Dry all coil in shell heat exchanger over other heat exchangers?
    Ans: Dry All coil in shell heat exchanger delivers exceptional performance, they offer high heat exchange area, maximum efficiency and effectiveness.
  5. What is the working temperature range for Dry All coil in shell heat exchanger?
    Ans: Working range for refrigerant side is from -10°C to +100°C and -10°C to +120°C for water side
